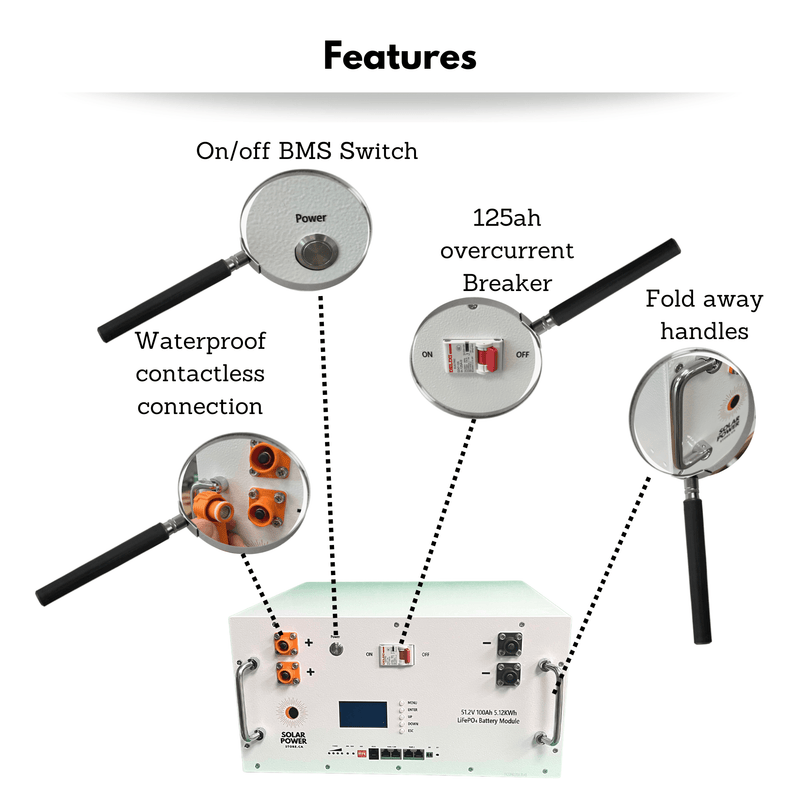

- Hidden On/Off key (RST key, press and hold >3s)
- Create 48 Volt Storage Systems
- Connect in parallel, up to 16 for 81,920 Watts
- Automatic system cell balancing
- All parameters available on the LCD display
- Temperature monitoring (high and low cut-off), 4 temperature sensors
- Exceptional voltage stability
- <70% the weight of similarly sized SLA batteries
Nominal Voltage: 51.2 V
Nominal Capacity: 100 Ah

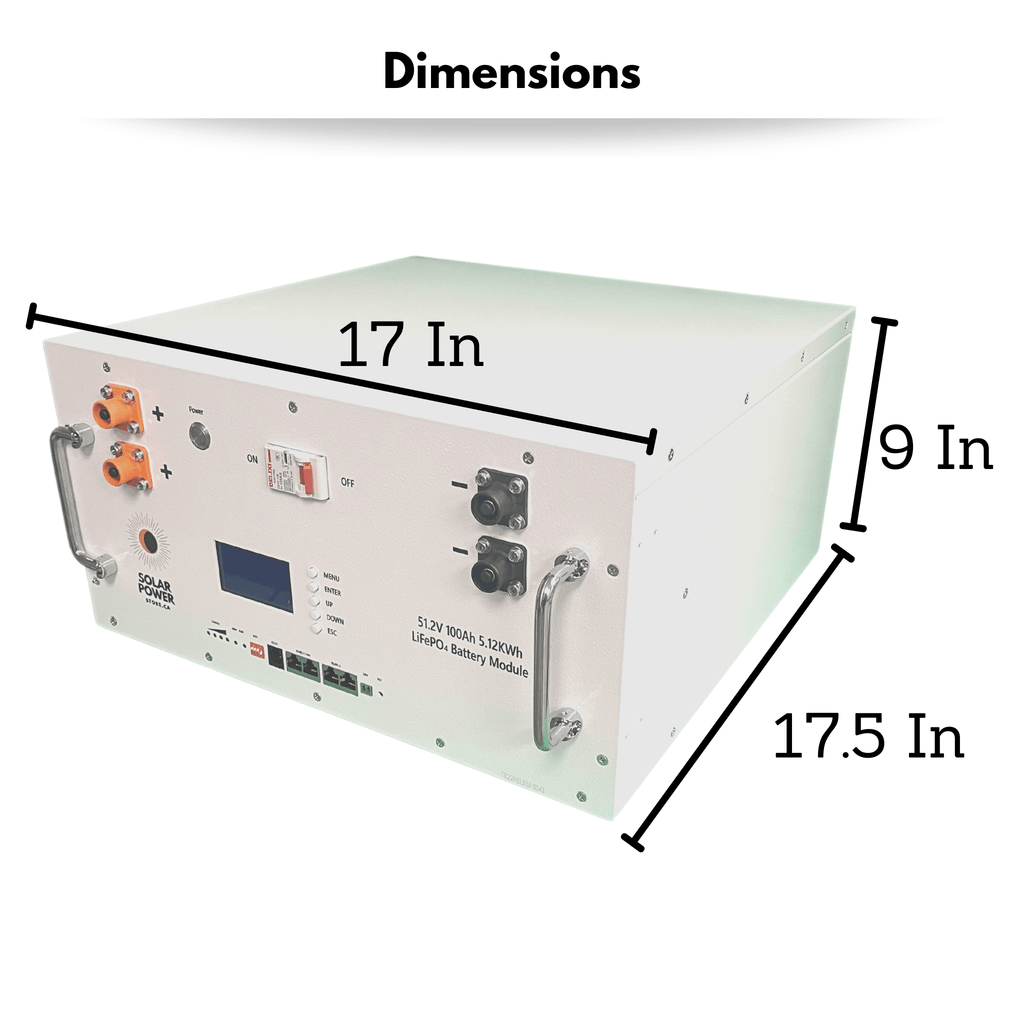

Dimension (LxWxH): 19" x 17" x 8.6″ (482mmx430mmx221mm)
Approx. Weight: 100 lbs ( 45 Kg )
Capacity @ 20A 300 min
Energy: 5120 Wh
Resistance: < 50mΩ
Self Discharge: < 3%

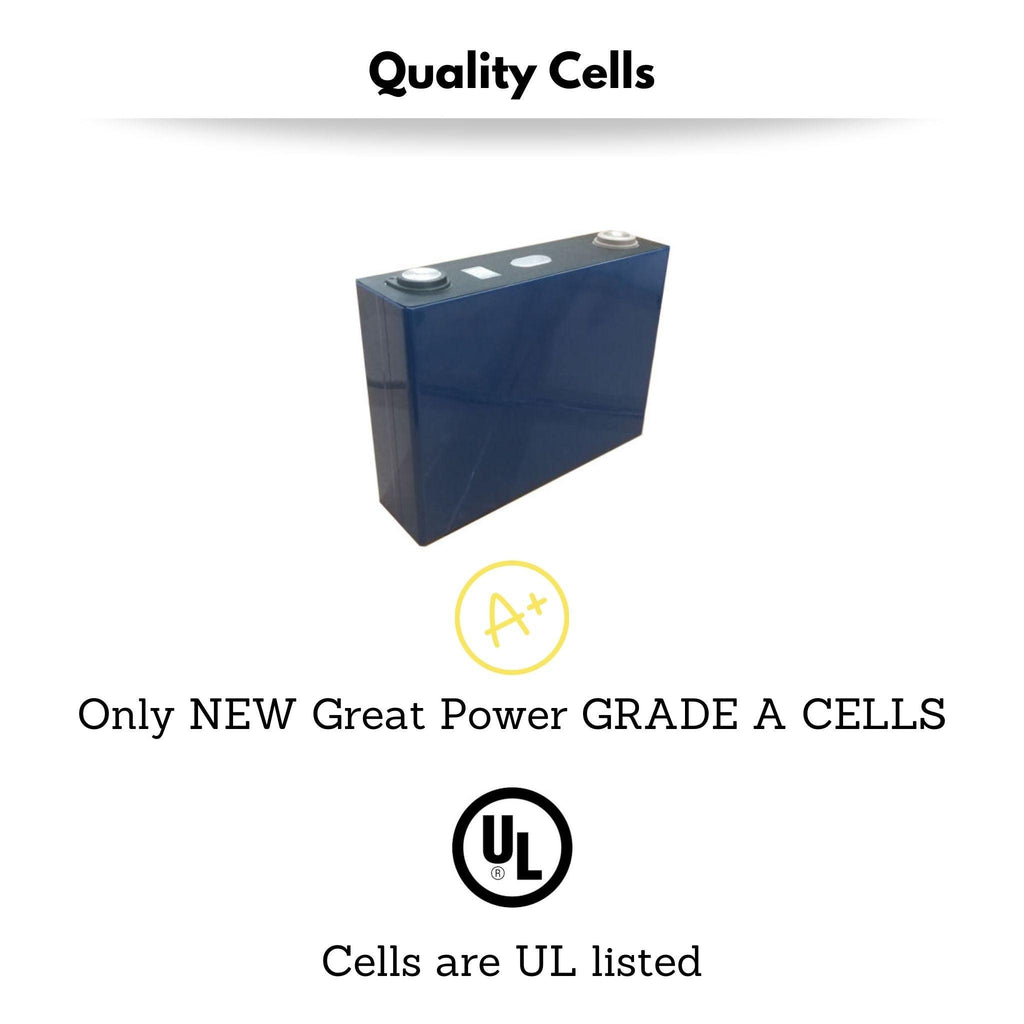

Cells: 3.2V 100Ah Cells
Recommended Charge Current: 50 A
Maximum Charge Current: 100 A
Recommended Charge Voltage: 58.4 V (3.65 V/Cell)
BMS Charge Cut-Off Voltage> 59.2 V (3.7 V/Cell)
Reconnect Voltage < 54.08 V (3.38 V/Cell)
Balancing Voltage > 54.4 V (3.4 V/Cell)
Maximum Continuous Dishcarge Current 100 A
BMS Discharge Current High Warning 125 A
BMS Discharge Cut-Off Current 130 A (1000ms)
Low Voltage Warning 44.8 V ( 2.8 V/Cell*16)
BMS Discharge Cut-Off Voltage <40 V (1 s) ( 2.5 V/Cell*16)
Reconnect Voltage >46.4 V ( 2.9 V/Cell)
Short Circuit Protection 300 μs
Terminal Type M8x4
Terminal Torque 106 ~ 132 in-lbs ( 12 ~ 15 N·m )
Case Material: Steel
Recommended Connection Wire: 6 AWG
Temperature Sensor Quantity: 6 pcs
Discharge Temperature:– 4 ~ 140 °F ( – 20 ~ 60 °C )
Charge Temperature– 23 ~ 131 °F ( 0 ~ 55 °C )
Storage Temperature– 23 ~ 95 °F ( 0 ~ 35 °C )
BMS High Temperature Cut-Off 149 °F ( 65 °C )
Reconnect Temperature 140 °F ( 60 °C)
All our products come with a 10-year limited warranty.
- Covers any defects in materials or workmanship
- Covers LiFePO4 cells failure over 10 years
- Covers the original purchaser only, non-transferable.
Changing any settings in the BMS will VOID the warranty. Only the factory set parameters are warranted.
