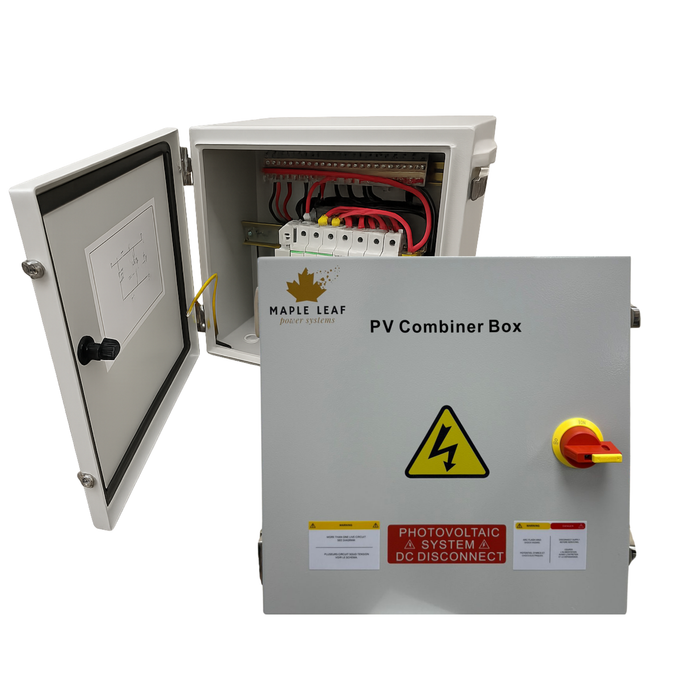

The solar panel combiner box is an essential component of solar power systems, either connected to the grid or running independently. Its durable shell can endure rain, freezing conditions, and extreme heat, guaranteeing dependable performance in harsh environments. This combination box emphasizes safety by including separate fuses, high-voltage arresters, a 1000V DC switch and 600V DC breakers, including overvoltage and overcurrent safety features. The high-voltage arresters do not just safeguard against lightning but also have effective current-limiting capacity, improving the system's dependability and longevity.
Simple wiring allows for quick installation on any conventional surface. Its universal compatibility with different solar panel brands provides a smooth integration. It supports 12V, 24V, and 48V systems, allowing for a variety of photovoltaic array layouts. In essence, the Solar Panel Combiner Box maintains the safety and effective operation of solar power systems, providing users with confidence in their renewable energy setups.
Key Features:
-
Surge Protection: Safeguard your entire system from damaging power surges or "spikes" caused by lightning, appliance operations, wiring issues, or utility problems. Our combiner box ensures uninterrupted performance by neutralizing voltage irregularities, guaranteeing the longevity and reliability of your solar system.
- Durable Shell: The Solar Panel Combiner Box features a robust shell designed to withstand various environmental challenges, including rain, pressure, and flames. This durability ensures reliable performance in harsh conditions, safeguarding the components within.
- Safety Emphasis: With separate fuses, high-voltage arresters, and a DC circuit breaker equipped with overvoltage and overcurrent protection, safety is paramount in this combiner box. 1000V DC switch and 600V DC breakers. These features not only protect against lightning but also offer excellent current-limiting capabilities, enhancing the system's reliability and longevity.
- Simple Installation: Thanks to its simple wiring design, installing the combiner box on any conventional surface is quick and straightforward. This ease of installation minimizes setup time and ensures hassle-free integration into solar power systems.
- Universal Compatibility: The combiner box is compatible with a wide range of solar panel brands, facilitating seamless integration into existing systems. This universal compatibility streamlines the installation process and provides flexibility for users to choose their preferred solar panels.
- Support for Multiple Systems: Supporting 12V, 24V, and 48V systems, the combiner box accommodates various photovoltaic array layouts. This versatility allows users to configure their solar power systems according to their specific requirements, enhancing overall flexibility and usability.
Product Specification:
General:
- Dimensions - (W x H x D) 180x450x400mm / 7x17.7x15.75 inch
- Weight - 15kg/33lbs
- Ingress protection rating - IP 65
- Operating environment temperature range - -45°C - +60°C
- Warranty - 10 years
- Cooling method - Vents
Protection:
- PV reverse polarity protection - YES
- Over current/voltage protection - YES
- DC Short-circuit protection - YES
- Leakage current protection - YES
- DC switch - YES
- Rapid shut down - OPTIONAL
- Grid/AFCI/RSD monitoring - OPTIONAL
Input (PV DC):
- Rated PV input voltage (V) - Rated for 1000 (CSA limited to 600VDC)
- Base Model PV Inputs - 2 x 16A
- Max Number of Inputs/Outputs - 2 x 16A or 2 x 20A
- PV input voltage range (V) - 600V
- Max input current each String - 20A @ 2 strings & 16A @ 2 strings
- Max Discharge Current of SPD - 40kA
- SCCR - 5kA
- Max. PV short-circuit current input per MPPT (A) - 44/44
- Max Total Current - 600V
Output (PV DC):
- Rated PV input voltage (V) - 1000V
- Base Model PV Inputs - 2 x 16A
- PV input voltage range (V) - 1000V
- Max output current each String - 20A @ 2 strings & 16A @ 2 strings
- Max total current - 45A @ 100V
Standards & Certifications:
- CSA 22.2
