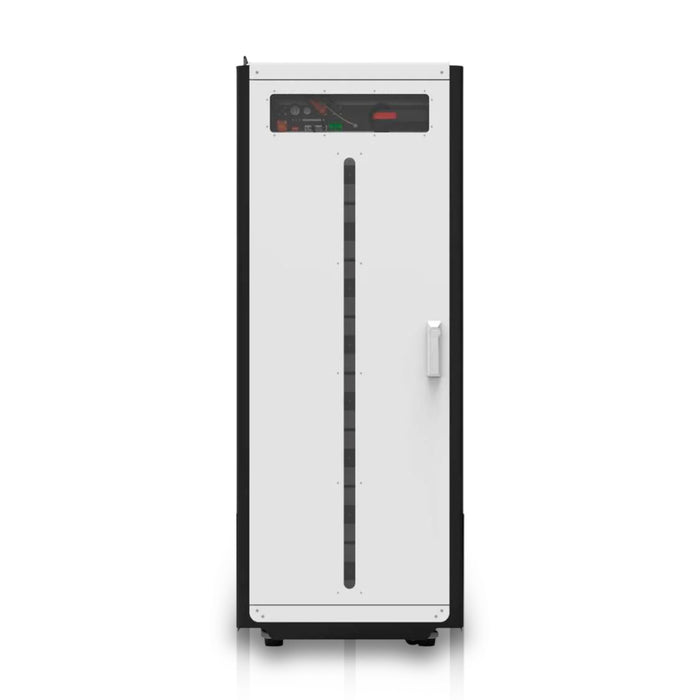

The Pytes HV48100 Floor Mount Battery Cabinet is a professional-grade battery enclosure designed for secure installation of Pytes HV48100, V5°, and V5°α high-voltage lithium battery modules. Ideal for residential solar battery storage, commercial energy storage systems (ESS), off-grid solar applications, microgrids, backup power systems, and renewable energy projects, this scalable battery cabinet provides a clean, organized, and space-efficient solution for housing high-voltage battery banks.
Designed for solar installers, electrical contractors, EPC firms, energy storage integrators, and homeowners seeking dependable battery storage infrastructure, the HV48100 cabinet supports expandable energy storage capacities up to 81.92kWh while maintaining a compact footprint and professional appearance.
Key Features
- Scalable Battery Storage Design
Accommodates multiple battery configurations up to 81.92kWh, allowing homeowners and businesses to expand energy storage without replacing existing infrastructure. - Compatible with Pytes HV48100, V5° & V5°α Batteries
Designed specifically for Pytes high-voltage battery systems, providing broad compatibility within the Pytes ecosystem. - Floor-Mounted Steel Cabinet Construction
Durable enclosure construction helps safeguard battery modules from accidental contact and installation-site hazards. - Optimized Space-Saving Footprint
Compact dimensions make the cabinet suitable for utility rooms, electrical rooms, garages, and commercial energy storage facilities. - High-Capacity Energy Storage Support
Supports large-scale battery deployments for whole-home backup, commercial load shifting, and off-grid power systems. - Installer-Friendly Design
Purpose-built for Pytes battery systems to streamline deployment, battery management, and future maintenance requirements. - Professional ESS Enclosure Solution
Keeps battery modules neatly contained while supporting industry best practices for energy storage system layouts. - Supports Residential, Commercial & Industrial Applications
Suitable for solar battery storage, backup power systems, microgrids, agricultural facilities, telecom sites, and commercial energy storage projects.
Technical Specifications
| Specification | HV48100 8S | HV48100 12S | HV48100 15S |
|---|---|---|---|
| Compatible Battery Models | HV48100 | HV48100, V5°, V5°α | HV48100, V5°, V5°α |
| Maximum Battery Capacity | 40.96kWh | 61.44kWh (HV48100) / 66.56kWh (V5 Series) | 76.8kWh (HV48100) / 81.92kWh (V5 Series) |
| Battery Configuration | 8 × HV48100 BMU (1P8S) | 12 × HV48100 BMU (1P12S) / 13 × V5° or V5°α | 15 × HV48100 BMU (1P15S) / 16 × V5° or V5°α |
| Dimensions (W × D × H) mm | 600 × 640 × 1555 mm | 595 × 680 × 2100 mm | 1054 × 626 × 1463 mm |
| Dimensions (W × D × H) in | 23.6 × 25.2 × 61.2 in | 23.43 × 26.77 × 82.68 in | 41.5 × 24.7 × 57.6 in |
| Weight | 89.6 kg (197.5 lbs) | 138 kg (304.2 lbs) | 126.5 kg (278.9 lbs) |
| Enclosure Rating | N/A | IP20 | IP20 |
| Installation Type | Floor Mount | Floor Mount | Floor Mount |
