Reliable Power Switching for Home and Business Backup Systems

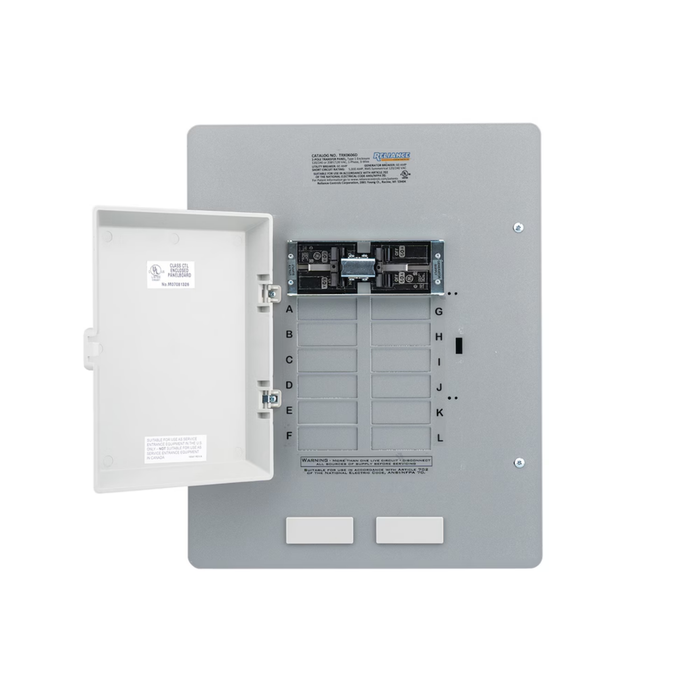

Take full control of your home’s backup power system with the Reliance Controls TRK Series Manual Transfer Panel. Designed for safe, seamless integration between utility and generator power, the TRK Series offers dependable switching performance with a durable indoor metal enclosure.
Choose the model that best fits your power requirements:
-
TRK0606D (60A/60A) for moderate residential or light commercial loads.
-
TRK1006D (100A/60A) for higher utility service with the same 60A generator input.
What This Panel Does:
The TRK Manual Transfer Panel allows you to route generator power to specific branch circuits in your home or facility during an outage. It isolates generator and utility sources, preventing dangerous back-feeding while delivering continuous power to your most critical circuits — such as lighting, HVAC, pumps, or essential appliances.
Unlike smaller single-load transfer switches, the TRK Series handles up to 12 full circuits (or 20 half-circuits), giving you the flexibility to manage multiple circuits safely and efficiently.
Variants & Technical Specifications:
| Variant | Max Utility Input | Max Generator Input | Ideal For |
|---|---|---|---|
| TRK0606D | 60A | 60A | Mid-sized homes and moderate load generator systems |
| TRK1006D | 100A | 60A | Larger homes or buildings with heavier utility loads |
Features:
-
12/20 Circuit Capacity – Supports 12 full circuits or 20 half circuits.
-
Safety-First Design – Prevents back-feeding with interlocking breakers.
-
Durable Metal Construction – Powder-coated steel enclosure for indoor protection.
-
Heavy Copper Bus Bar – Ensures consistent conductivity and long-lasting performance.
-
Easy Installation – Pre-punched knockouts for clean conduit connection.
-
Compatible with Most Portable Generators – Ideal for residential and small commercial setups.
- cUL Certified – Fully tested and approved to Canadian safety standards for reliable installation and code-compliant operation
Key Benefits:
-
Comprehensive Circuit Control – Manage multiple circuits from one reliable transfer panel.
-
Flexible Power Management – Customize which circuits run on generator or utility power.
-
Enhanced Safety – Interlocked breakers for maximum protection.
-
Professional Finish – Sleek powder-coated metal case complements any indoor setup.
-
Proven Brand Reliability – Backed by Reliance Controls’ 100+ years of electrical innovation.
