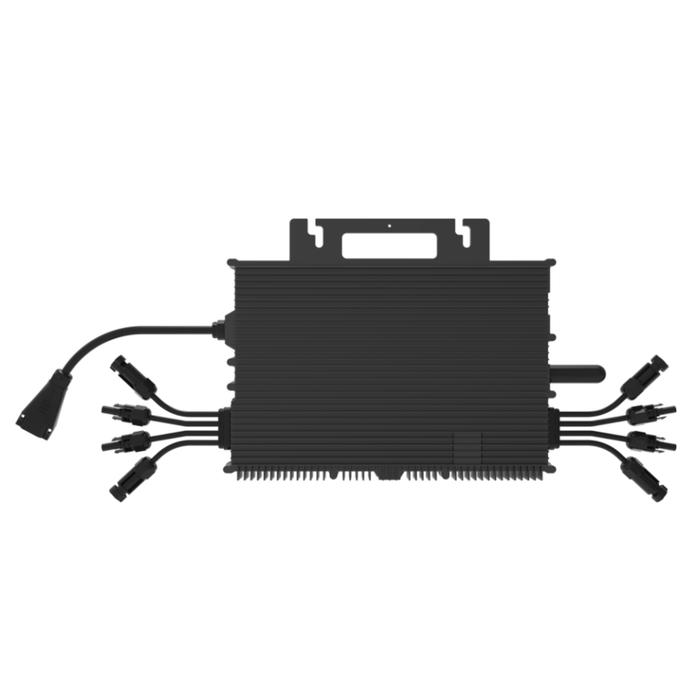

The NEP BDM2000 Microinverter is a high-wattage, grid-tie solar microinverter engineered for modern residential and commercial photovoltaic (PV) systems using today’s large-format solar panels. Designed specifically for Canadian solar installations, it delivers superior energy production, long-term reliability, and full utility compliance.
Supporting up to four high-power solar modules per unit, this 2000W solar microinverter reduces system complexity, lowers installation costs, and maximizes return on investment for rooftop solar, net-metered systems, and commercial solar arrays.
High-Wattage Microinverter for Large Solar Panels
Designed for 750W PV modules (×4), the BDM2000 is ideal for high-output residential solar systems, commercial rooftops, and multi-panel arrays where fewer inverters and higher power density are required.
Advanced Dual MPPT for Maximum Energy Harvest
With independent MPPT channels per input and >99.5% MPPT tracking accuracy, this dual MPPT microinverter maximizes solar production in real-world conditions such as shading, uneven roof orientations, and panel mismatch.
High Efficiency, Low Energy Loss
Achieve more usable solar energy with a CEC weighted efficiency of 95.5% and an ultra-low nighttime standby loss of just 0.11W, making it a top choice for energy-efficient solar power systems.
Built for Canada’s Climate
Certified NEMA-6 / IP66 / IP67, the BDM2000 operates reliably in extreme cold and heat, from -40°C Canadian winters to +65°C ambient temperatures, making it a dependable outdoor solar inverter for year-round operation.
Utility-Approved & Code-Compliant
Fully compliant with NEC 2020 rapid shutdown, DC arc-fault protection, and anti-islanding requirements, and certified to UL 1741SB, IEEE 1547, and international safety standards—ensuring smooth utility interconnection across Canada.
KEY FEATURES:
- 2000W grid-tie solar microinverter for high-capacity PV systems
- Supports 4 solar panels per microinverter
- Dual MPPT microinverter for higher energy yield
- Ideal for rooftop solar, net-metered solar, and commercial PV installations
- Powerline communication (PLC)—no additional communication wiring
- Low THD (<5%) for clean grid power output
- Rapid shutdown compliant solar inverter
- Suitable for indoor, outdoor, and wet-location installations
- Designed for Canadian residential and commercial solar projects
TECHNICAL SPECIFICATIONS
| Specification | Details |
| Model | NEP BDM2000 Microinverter |
| Peak AC Output Power | 2000W |
| Max Continuous Output Power: | 1-Phase: 1920W |
| 3-Phase: 1664W | |
| Recommended Max PV Power | 750W × 4 |
| MPPT Voltage Range | 22–55 Vdc |
| Max DC Input Current | 25A × 4 |
| Nominal Grid Voltage: | 1-Phase: 240 Vac |
| 3-Phase: 208 Vac | |
| CEC Efficiency | 95.5% |
| Protection Rating | IP66 / IP67 / NEMA-6 |
| Operating Temperature | -40°C to +85°C |
| Certifications | UL 1741SB, IEEE 1547, EN62109, IEC61000 |
