Maple Leaf Northern Fox Solar Battery & 9.6kW Hybrid Inverter Kit | 8kW to 28kW Expandable Energy Storage System

$7,799.99
$7,799.99
$7,799.99
Sold out
Quantity must be 1 or more

Downloads

Maple Leaf Northern Fox H1&AC1 Split-Phase 9.6kW Hybrid Inverter

Maple Leaf Northern Fox ECM4000 Master Battery & ECS4000 Expansion Battery

Maple Leaf Northern Fox Solar Power Energy Storage Kits
Available in 8 kW, 12 kW, 16 kW, 20 kW, 24 kW, and 28 kW options
Includes Maple Leaf Northern Fox 9.6kW Inverter + Battery Modules
Backed by a 15-Year Extended Warranty with Maple Leaf Power Systems support.

Overview
Unlock reliable, scalable energy storage with this Maple Leaf Northern Fox Solar Power Kit, a premium hybrid solution combining FOX’s cutting-edge energy technology with Maple Leaf’s trusted Canadian support and distribution. This all-in-one bundle includes a Maple Leaf Fox H1&AC1 9.6kW split-phase hybrid inverter and the modular Maple Leaf Fox ECS battery system with ECM4000 master control.

Whether you’re going off-grid, staying grid-tied, or operating a hybrid setup, this kit delivers maximum performance, flexibility, and peace of mind, ideal for residential or commercial energy systems.

What’s Included in Each Kit

Kit Size Master Battery (ECM4000) Slave Batteries (ECS4000) Hybrid Inverter (9.6kw)

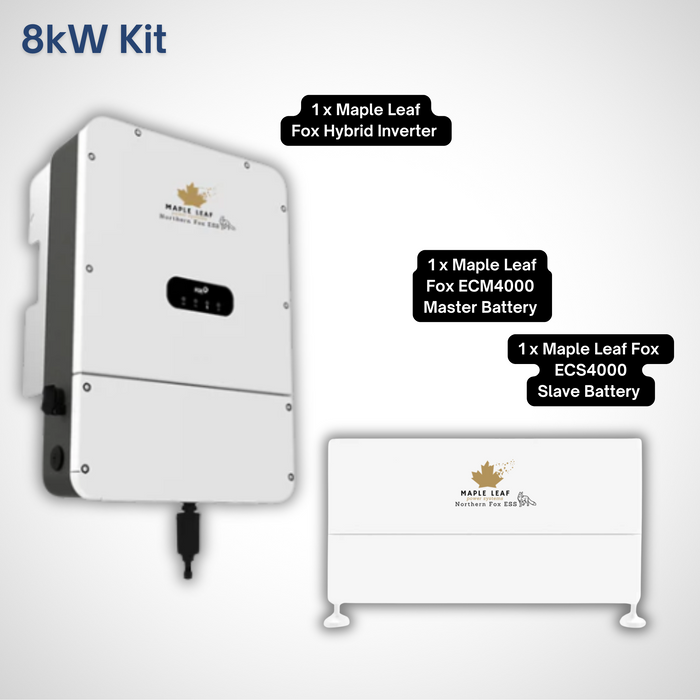

8 kW 1 1 1
12 kW 1 2 1
16 kW 1 3 1
20 kW 1 4 1
24 kW 1 5 1
28 kW 1 6 1

Note: System is expandable up to 27.8 kWh. Additional modules and inverters can be added for larger installations.

Key Features & Benefits

  • Maple Leaf Northern Fox H1&AC1 9.6kW Split-Phase Hybrid Inverter: 9.6 kW output with 97.6% efficiency, AFCI protection, app-based monitoring, and support for parallel inverter operation.
  • Maple Leaf Northern Fox ECM4000 + ECS4000 Battery System: Durable LiFePO₄ battery chemistry with modular scalability, >6000 cycle life, and over 95% round-trip efficiency.
  • Easy Plug-and-Play Battery Expansion: Simply stack to connect up to 6 slave batteries to the master battery to increase storage to up to 27.8kW capacity
  • Smart Monitoring via FoxCloud App: Track and control your energy usage from anywhere with intuitive mobile and web interfaces.
  • Outdoor-Ready & Certified Safe: All components are IP65/IP66-rated for indoor or outdoor installation, UL and CSA certified for North American compliance.

Maple Leaf Northern Fox ECM4000 High-Voltage Master Battery

Key Features

  • Controls up to 6 ECS4000 slave modules

  • Plug-and-play with integrated BMS

  • IP65 weatherproof design w/ integrated battery heater for cold climate conditions

  • Extremely long cycle life with advanced LiFePO₄ chemistry

  • Compatible with FOX inverters via CAN/RS485

Specifications

  • Capacity: 3.975 kWh

  • Voltage: 57.6V

  • Max Charge/Discharge Current: 50A

  • Cycle Life: >6000 cycles @ 90% DoD

  • Efficiency: >95%

  • Weight: 108.4 kg (238.5 lbs)

  • Dimensions: 22.4 x 18.5 x 15.0 in

  • Certifications: UL1973, UL9540, UL9540A, UN38.3

  • Warranty: 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty

Maple Leaf Northern Fox ECS4000 High Voltage Slave Battery

Key Features

  • Expandable up to 7 modules (1 master battery + 6 slave batteries) for 27.8 kWh total storage

  • Cooled by heatsinks with no fans for zero-noise operation

  • 90% depth of discharge for maximum use

  • Plug-and-play installation

  • CAN communication

  • IP65 weatherproof design w/ integrated battery heater for cold climate conditions

Specifications

  • Voltage Range: 97.2 – 459.9V

  • Nominal Capacity: 3.97 kWh per module

  • Charge/Discharge Current: 50A continuous, 65A peak

  • Efficiency: >95%

  • Installation Type: Freestanding, indoor/outdoor

  • Operating Temp: -10°C to 55°C

  • Certifications: UL1973, UL9540, UL9540A, UN38.3

  • Warranty: 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty

Maple Leaf Northern Fox Split-Phase 9.6kW Hybrid/AC Inverter (Non-HUB Version)

Key Features

  • Split-phase 120/240V output, 9.6kW

  • Supports high-voltage lithium batteries

  • Remote monitoring via app or browser

  • Rapid backup switchover during outages

  • Advanced protection: AFCI, anti-islanding, surge

  • Weatherproof (Type 4X) & silent cooling

Specifications

  • Output Power: 9.6 kW standard

  • Solar Input: Max 12,960 W / 600V

  • Battery Voltage: 85 – 460 V

  • Efficiency: Up to 97.6%

  • MPPT: 2 independent trackers

  • Max Backup Power (10 min): 17.1 kVA

  • Noise: <35 dB

  • Dimensions: 18.2 x 25.9 x 9.2 in

  • Weight: 83.8 lbs

  • Certifications: UL 1741 SB, UL 1998, IEEE 1547, CSA 22.2, Rule 21, HECO

  • Warranty: 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty

Installation & Warranty

  • Compact wall or floor-mount options

  • Silent natural convection cooling

  • 12.5-year manufacturer warranty +2.5 years extended coverage through Maple Leaf Power Systems - 15yr total warranty

  • CSA, UL9540, UL1973, UL1741, FCC certified
