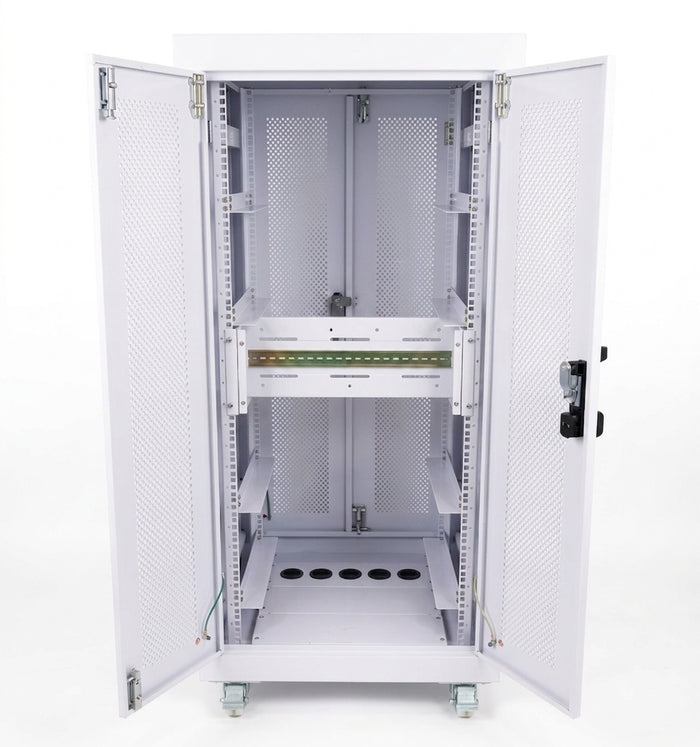

Keep your solar backup energy storage organized, safe, and efficient with the Maple Leaf Indoor Battery Cabinet. Engineered for residential, commercial, and utility solar installations, this durable steel cabinet serves as a heavy-duty, professional monitoring and housing system for server-rack-style solar batteries. Designed with a clean, uniform white finish, it seamlessly integrates into any space while keeping your wiring, bus bars, and power components fully protected.
Accommodating standard server-rack battery modules up to 18 inches in length, the cabinet features adjustable internal support rails to ensure a custom fit for virtually all standard battery heights. Pre-assembled out of the box for effortless setup, it simplifies every step of your solar installation and future battery expansions.
Key Features & Benefits
- Universal Server-Rack Compatibility: Adjustable internal support rails easily adapt to fit standard battery module heights up to 18" long.
- Quick-Snap Bus Bar Rail: Features an integrated DIN rail designed for fast bus bar attachment, complete with a removable clear plexiglass shield for added insulation and touch-safe protection.
- Rust-Free & Ground-Safe Design: Grounded components are unpainted to ensure continuous conductivity, backed by clear grounding marks and a protective grounding harness for absolute safety.
- Dual-Locking Vented Access: Front and rear dual-locking vented doors protect your investment while offering maximum airflow and full access during maintenance.
- Removable Side Panels: Pop-off side panels allow for simple cable routing and hassle-free wiring directly to your inverter.
- Lockable Mobility: Includes four heavy-duty wheeled casters (two front-locking) so you can easily maneuver, position, and secure the cabinet into place.
- Flawless Finish: Crafted from high-grade steel with a flawless, powder-coated white exterior designed to resist scratches, blisters, and wear over time.
What's in the Box
- Pre-assembled Maple Leaf Indoor Battery Cabinet
- 4 Heavy-duty wheeled casters (2 locking, 2 non-locking) with mounting hardware
- Rack-mount clip nuts and mounting screws
- Locking door keys (including spare set)
Technical Specifications
Dimensions: 23.5" x 23.5" x 49 1/4", not including casters (596.9mm × 596.9mm × 1,250.95 mm)
| Specification | Details |
|---|---|
| Max Battery Length | Up to 18 inches |
| Battery Compatibility | Standard server-rack style solar battery modules |
| Material | Heavy-duty steel with protective white finish |
| Access | Dual-locking front/rear doors & removable side panels |
| Mobility | 4 caster wheels (2 front locking) |
| Safety Shield | Removable clear plexiglass bus bar cover |
