Please note:
- Foundation not included
- The solar panel brand and model may vary depending on current stock availability. All panels provided will be high-quality bifacial modules in the 550W class.
Simplify your solar installation with these pre-configured ground mount and solar panel bundles! Choose from 4-panel (2.28kW), 8-panel (4.56kW), 16-panel (9.12kW), and 32-panel (18.24kW) system sizes. These Canadian-assembled kits are designed to be easily scalable for all types of residential, agricultural, or commercial solar power setups.
Each kit includes premium 550W-class bifacial solar panels*, durable combiner boxes, and rugged Maple Leaf Canada Goose Ground Mounts — engineered for fast installation, long-term durability, and seasonal adjustability.
Kit Features:
550W-Class Bifacial Solar Panels
High-efficiency bifacial solar modules capture sunlight from both the front and rear surfaces for increased energy production. Designed for Canadian climate conditions including snow, low light, and wind.
*Exact make and model of solar panels may vary depending on availability. All panels provided will meet or exceed advertised power ratings and reliability standards.
Maple Leaf Combiner Box
Supports 12V/24V/48V systems with built-in surge protection, fuses, and disconnect switches. Rated for harsh conditions with fire-resistant, waterproof housing.
Maple Leaf Canada Goose Ground Mount
Tilt-adjustable (30°–60°) design using extruded aluminum and stainless steel. Built to handle heavy snow and wind loads. Accommodates panels up to 1700mm wide. 25-year warranty included.
Flexible Kit Options:
| System Size | Bifacial Panels | Combiner Box | Goose Mounts | 50FT PV Extension Cords | PV Cable Gland Fittings |
|---|---|---|---|---|---|

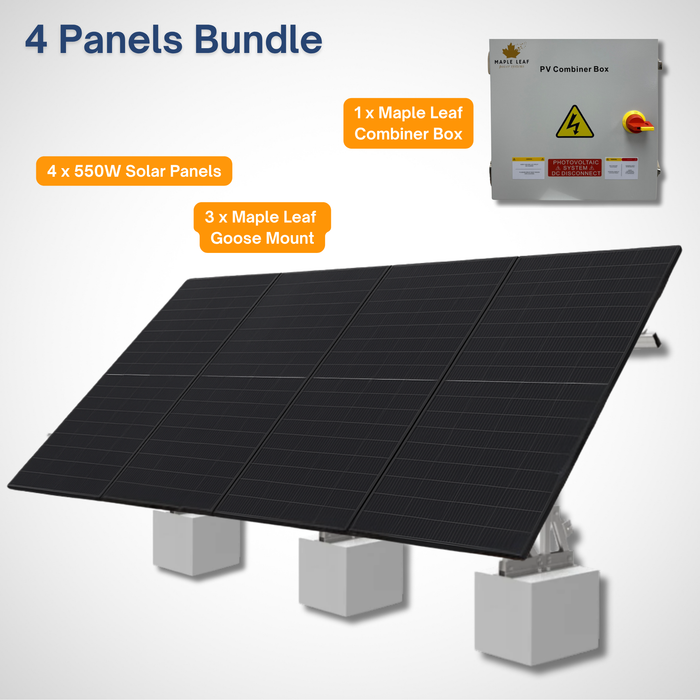

| 2.28kW (4 Panel Kit) | 4 | 1 | 3 | 1 | 4 |
| 4.56kW (8 Panel Kit) | 8 | 1 | 6 | 1 | 4 |
| 9.12kW (16 Panel Kit) | 16 | 1 | 12 | 2 | 6 |
| 18.24kW (32 Panel Kit) | 32 | 2 | 24 | 4 | 10 |
Made for Canadian Weather:
-
Ground mount designed for high winds and snow loads
-
Combiner box is fire-resistant, waterproof, and lightning protected
Expandable & Modular Design: Add more panels and mounts easily as your energy needs grow. Goose mounts include rail splice connectors for fast & easy expansion.
Product Specifications
Maple Leaf Combiner Box:
-
Surge Protection: High-voltage arresters, overcurrent protection
-
DC Switch: 1000V
-
Breakers: 600V DC
-
Compatibility: 12V / 24V / 48V systems
-
Shell: Fire-resistant and waterproof
Maple Leaf Canada Goose Ground Mount:
-
Dimensions: 1607 × 1702 × 606 mm
-
Weight: 17.5 kg (Base) / 20 kg
-
Tilt Angle: 30° to 60°
-
Material: Extruded aluminum with stainless fasteners
-
Max Panel Width per Rail: 1700 mm
-
Snow Load: 860 lbs per column
-
Wind Load: Up to 105 mph with hurricane reinforcing kit (sold separately)
-
Warranty: 25 years
