This high-performance package is designed for seamless integration, providing a reliable and efficient power solution for residential and commercial solar applications. With advanced safety certifications and premium-grade components, this bundle ensures superior performance and long-term dependability.
Key Features
High Capacity Battery: The Maple Leaf Moose Battery provides 14.34KWh of energy storage with a built-in heater for optimal performance in all weather conditions.
Powerful 12KW Inverter: The Luxpower SNA-US-12K inverter delivers a robust 12KW output with split-phase 240/120V capabilities for a seamless power supply.
LiFePO4 Chemistry: Safe and long-lasting Lithium Iron Phosphate technology ensures durability and stability.
User-Friendly Interface: The battery features a 5-inch touch LCD screen for easy monitoring, while the inverter includes an LCD and RGB indicator lights.
Smart Battery Management System (BMS): Advanced BMS safeguards the battery with protective features to ensure long-term efficiency.
Dual MPPTs with 24kW PV Input: The inverter’s dual MPPTs enhance solar energy harvesting from multiple panel configurations.
Fast Charging & Discharging: The 250A max charging/discharging capacity enables rapid energy storage and deployment for consistent power availability.
Wall-Mounted Design: Compact, space-saving installation with included mounting hardware.
Advanced Safety & Compliance: UL9540, UL9540A, UL1973 certified, meeting all Canadian and USA code requirements for a secure and compliant solar solution.
Comprehensive Monitoring: Remote monitoring capabilities via Wi-Fi, RS485, and CAN communication ports for real-time energy management.

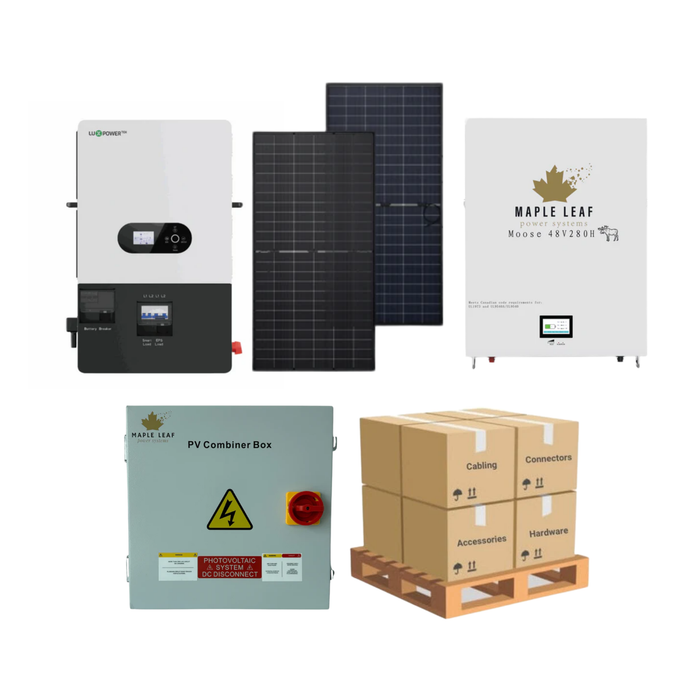

Kit Components
7KW Kit
Package Components:
🌞 12 × Maple Leaf Bifacial 570W Solar Panels
🌞 1 × Luxpower 12KW (SNA-US-12K) Hybrid Inverter
🌞 1 × Maple Leaf Moose 48V 14.34kWh Lithium Battery
🌞 2 × 50 FT Solar Panel Wire Extension (10 AWG)
🌞 1 × Maple Leaf Solar Combiner Box
14KW Kit
Package Components:
🌞 24 × Maple Leaf Bifacial 570W Solar Panels
🌞 1 × Luxpower 12KW (SNA-US-12K) Hybrid Inverter
🌞 2 × Maple Leaf Moose 48V 14.34kWh Lithium Batteries
🌞 1 × 4/0 AWG Battery Cable Set
🌞 3 × 50 FT Solar Panel Wire Extension (10 AWG)
🌞 1 × Maple Leaf Solar Combiner Box
🌞 2 × 4 Pin Bus Bars
🌞 1 × Splitter Box
18KW Kit
Package Components:
🌞 32 × Maple Leaf Bifacial 570W Solar Panels
🌞 1 × Luxpower 12KW (SNA-US-12K) Hybrid Inverter
🌞 3 × Maple Leaf Moose 48V 14.34kWh Lithium Batteries
🌞 1 × 4/0 AWG Battery Cable Set
🌞 4 × 50 FT Solar Panel Wire Extension (10 AWG)
🌞 2 × Maple Leaf Solar Combiner Boxes
🌞 2 × 4 Pin Bus Bars
🌞 1 × Splitter Box
Product 1: Maple Leaf 14.34KWh 51.2V 280AH Battery with Built-in Heater
Key Benefits:
-
Exceptional Performance: The Maple Leaf 14.34KWh Battery is built for unmatched performance, ensuring you never run out of power when you need it most.
-
Intelligent Battery Management System (BMS): With an intelligent Battery Management System (BMS), your investment is safeguarded with advanced protective features.
-
Cutting-Edge Performance: The Maple Leaf 14.34KWh 51.2V 280AH Battery is a powerhouse of energy storage, designed for top-tier performance and unwavering reliability. It ensures you have a reliable power solution for your needs.
-
User-Friendly Interface: With a 5-inch touch LCD screen, this LiFePO4 Lithium battery system provides a user-friendly interface, offering advanced features like working, alarming and protecting, which is customized to meet your energy storage requirements.
-
Premium A Grade Cells: Built with premium grade A cells, this battery is engineered to deliver over 6500 cycles of use, providing consistent and long-lasting power for your needs.
-
Safety Assurance: The battery system is equipped with a dual industrial heavy-duty power switch, prioritizing safety and ensuring the dependability and security of your energy storage solution.
-
Impressive Warranty: With an exceptional 15-year warranty, this battery investment guarantees peace of mind and maximum returns, making it a wise choice for long-term energy storage solutions.
Product Specification
- Dimension (W/H/D): 900*675*200mm / 35.4*26.6*7.8 in
- Weight Approximate: 128.5kgs / 283 lbs
- Master LED Indicator: 4 LED (SOC:25%~100%)/ 2 LED (working, alarming, protecting)
- IP Rating of Enclosur: IP20
- Working Temperature: Charge: -20℃~55℃ Discharge:-20℃~55℃
- Storage Temperature: -20℃~35℃
- Humidity: Charge: 5%~95%
- Altitude: ≤2000m
- Cycle Life (25±2℃,0.5C/0.5C,80%EOL): ≥8500
- Installation: Wallmounted
- Communication Port: CAN2.0, RS485
- Warranty Period: 15 years
- Life Cycle Power During Warranty Period: 64.80MWh@80% EOL
- Certification: UL1973, UL9540A, UL9540 [With Luxpower and EG18K inverters]
Product 2: Luxpower SNA-US-12K Inverter
Key Features:
-
12KW Output Power: Reliable performance with 240/120V split-phase output.
-
Dual MPPTs with 24kW PV Input: Maximizes solar energy utilization.
-
250A Max Charging & Discharging: Supports rapid energy deployment.
-
AFCI Protection: Prevents electrical fire risks.
-
Dual AC Output Ports & Generator Support: Flexible load connections and backup power integration.
-
Smart Cooling System: Optimized thermal management for longevity.
-
Comprehensive Monitoring: LCD display, RGB lights, RS485, Wi-Fi, CAN for real-time monitoring.
-
Certified & Safe: UL9540, UL1741, CSA 22.2 compliant with a 5-year warranty.
Specifications:
-
Dimensions: 530830 150mm / 17.7225.59 5.9 in
-
Weight: 45kg / 99.2 lbs
-
IP Rating: IP20
-
Operating Temperature: 0 to 45℃
-
Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
-
Warranty: 2 years manufacturer, 3 years Maple Leaf extension (5 years total)
Certifications & Downloads:
-
UL9540 Approved (Luxpower & Sol-Ark Certified)
-
UL9540A Test Report
-
UL1973 Certificate
-
