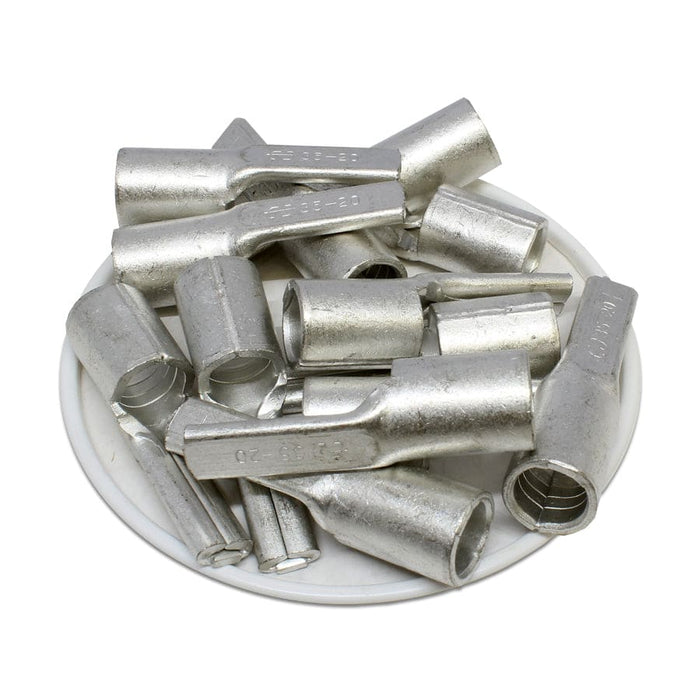

Ensure reliable and high-performance electrical connections with our range of non-insulated pin terminals. Constructed from tin-plated copper, these terminals offer excellent conductivity, corrosion resistance, and durability for a variety of electrical applications. Choose the right size for your project from our selection of 2/0 AWG, 2 AWG, and 4 AWG options.
Features:
- Tin-Plated Copper Construction: Provides superior conductivity and corrosion protection.
- Non-Insulated Design: For applications where insulation is not required or will be provided separately.
- Versatile Application: Ideal for use in automotive, industrial, and other electrical systems.
Variants:
- 2/0 AWG Pin Terminals
- Wire Gauge: 2/0 AWG (70mm²)
- Maximum Current: 265 Amps
- Maximum Voltage: 2000V
- Terminal Thickness: 2.00mm
- Part Number: PTNB70-25
- 2 AWG Pin Terminals
- Wire Gauge: 2 AWG (35mm²)
- Maximum Current: 170 Amps
- Maximum Voltage: 2000V
- Terminal Thickness: 1.5mm
- Part Number: PTNB35-20
- 4 AWG Pin Terminals
- Wire Gauge: 4 AWG (25mm²)
- Maximum Current: 125 Amps
- Maximum Voltage: 2000V
- Terminal Thickness: 1.2mm
- Part Number: PTNB25-15
