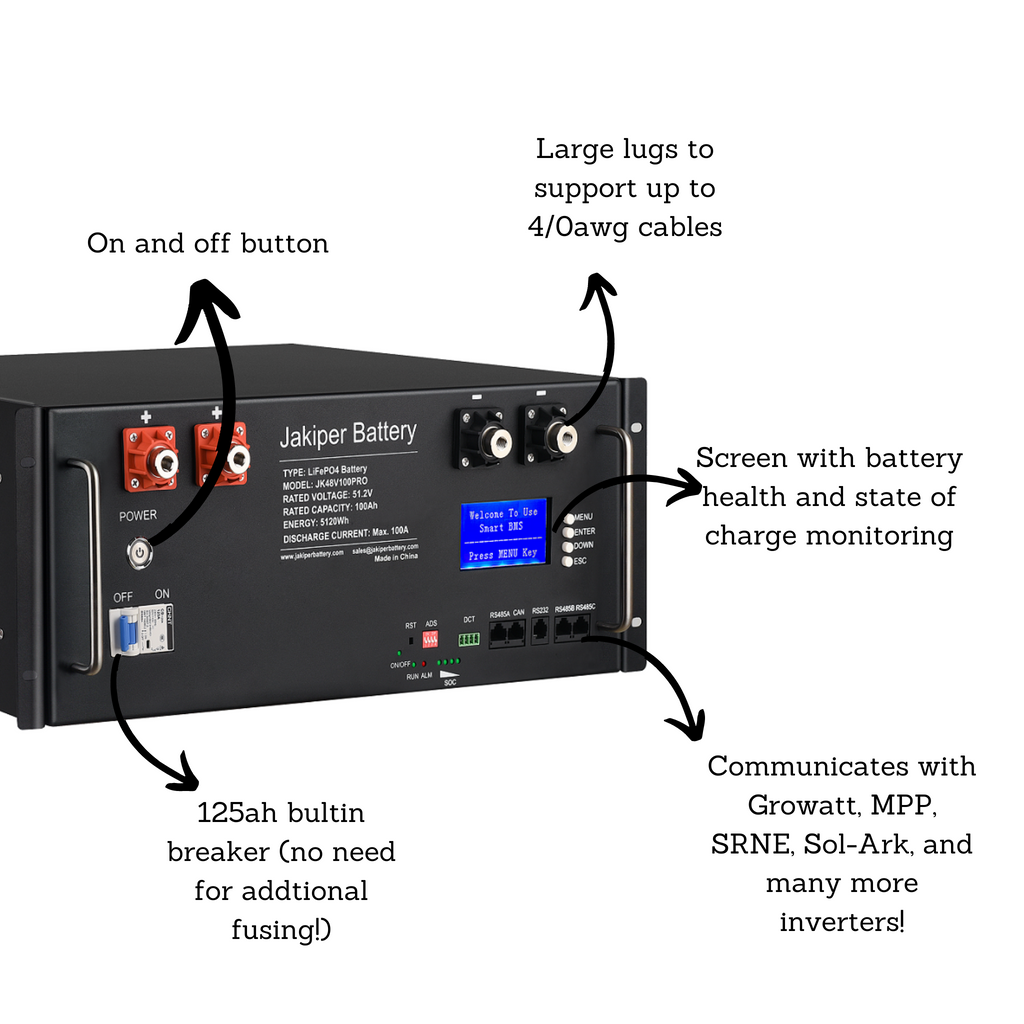

1. Communicate with Growatt/MPP/Sol-Ark/Victron/Luxpower/Deye Inverter
2. Power key (for BMS On/Off)
6. Recommend <50A Charge | <100A Discharge
6. Capability 100A Max Charge Current | 110A Max Discharge Current
7. 4U Size | 19″ Rack Installation
|Capacity @ 20A||
3.2V 100Ah Cells
|Recommended Charge Current||
|Maximum Charge Current||
|Recommended Charge Voltage||
56 – 58.4 V
|BMS Charge Cut-Off Voltage||
> 59.2 V
< 54 V
(Cell > 3.4 V When Charging)
|Maximum Continuous Dishcarge Current||
|BMS Discharge Current High Warning||
|BMS Discharge Cut-Off Current||110 A (1000ms)|
|Low Voltage Warning||44.8 V ( 2.8 V/Cell*16)|
|BMS Discharge Cut-Off Voltage||<40V( or Cell<2.5 V) (1 s)|
|Reconnect Voltage||>42.5 V|
|Short Circuit Protection||300 μs|
|Terminal Torque||106 ~ 132 in-lbs ( 12 ~ 15 N·m )|
|Recommended Connection Wire||6 AWG|
|Temperature Sensor Quantity||6 pcs|
|Discharge Temperature||– 4 ~ 140 °F ( – 20 ~ 60 °C )|
|Charge Temperature||23 ~ 131 °F ( – 5 ~ 55 °C )|
|Recommended Storage Temperature||23 ~ 95 °F ( – 5 ~ 35 °C )|
|BMS High Temperature Cut-Off||149 °F ( 65 °C )|
|Reconnect Temperature||140 °F ( 60 °C )|
Comes with a 10-year limited warranty.
- Covers any defects in materials or workmanship
- Covers LiFePO4 cells failure over 10 year
- Covers the original purchaser only, non-transferable.
Changing any settings in the BMS will VOID the warranty. Only the factory set parameters are warranted.
